Specifications of the ARE-D1 Charger and 2600 Battery Bundle

ARE-D1 CHARGER

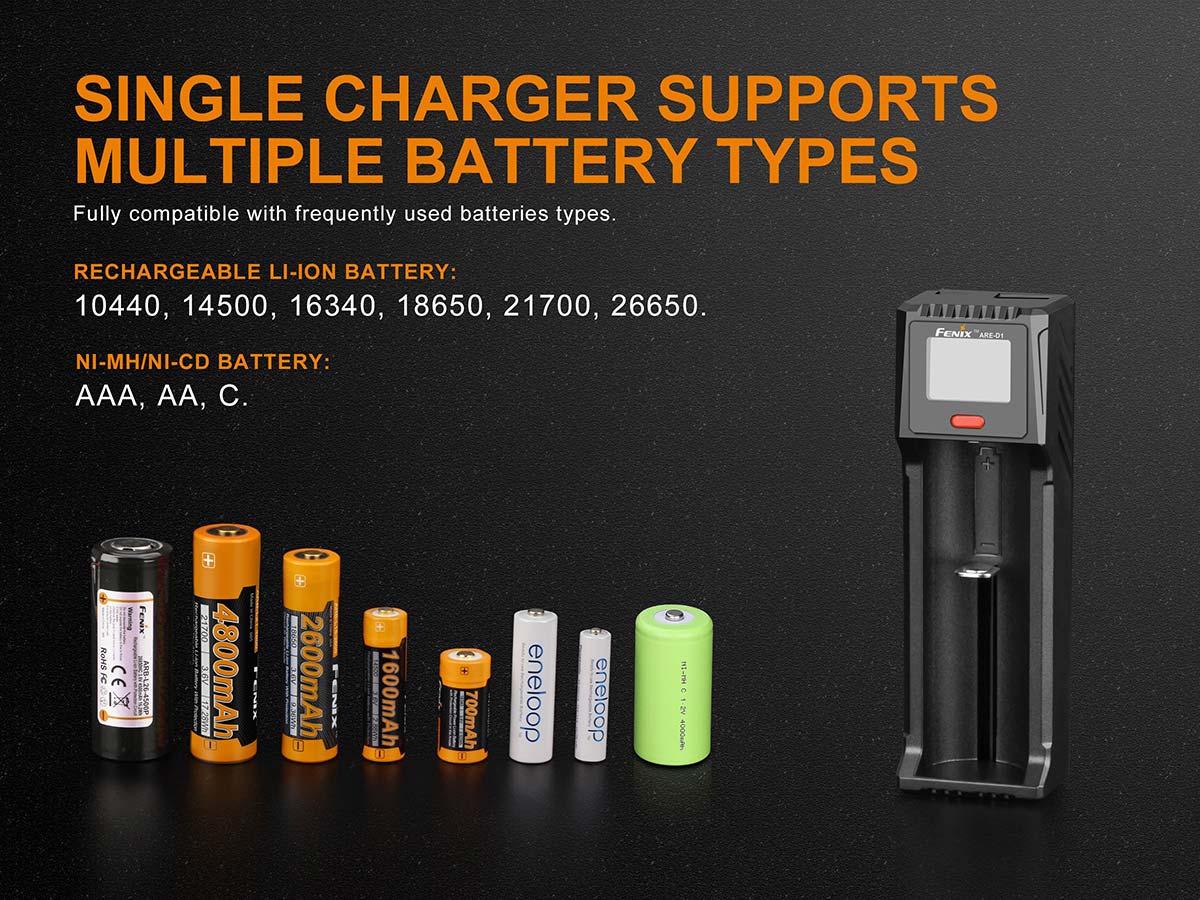

Battery Compatibility:
Li-ion batteries:  10440, 14500, 16340, 18350, 18650, 21700, 26650
Ni-MH or Ni-Cd batteries:  AA, AAA, C

Output:
4.2V/3.65V: 10440, 14500, 16340, 18650, 21700, 26650 (Li-ion)
1.5V: AA, AAA, C (Ni-MH/Ni-Cd)

Current:
0.5A/1.0A/2.0A: 10440, 14500, 16340, 18650, 21700, 26650 (Li-ion)
0.5A/1.0A: AA, AAA, C (Ni-MH/Ni-Cd)

Weight: 2.2 oz. (61.3g) excluding cable

Size: Length: 4.7” (120mm)  Width: 1.5” (38mm)  Height: 1.2” (30mm)

ARB-L18-2600 BATTERY

• 2600mAh high capacity
• Voltage: 3.6V
• Button Top Design
• Protection circuit built in the anode with a steel hat by riveting process
• Steel shell eliminates the risk of short circuit caused by collision and impact.
• Pressure Relief Vent: Expels waste gas generated by internal short circuit
• Expelling waste gas prevents a cell from inflating or exploding.
• Three Sets of Over-Heat Protection:
  • Over charge protection and over discharge protection
  • Short circuit protection
  • Overheating protection
• 500 Charge Cycles: A properly maintained ARBL18 battery is designed to retain up to 75% of its original capacity at 500 full charge and discharge cycles.
• Charging Current: Recommended 1A, maximum 2A
• Weight: 1.8 ounces (50g)
• Size: Length: 2.7″ (69mm) Diameter: 0.7″ (18.6mm)
• Warranty Period: 12 month from date of purchase
