On/off

Fully press the tail switch to turn on or turn off the flashlight.

Mode switching

With the light switched on, loosen the light head until the light goes off, then tighten the light head again to switch the lighting mode.

Output Selection

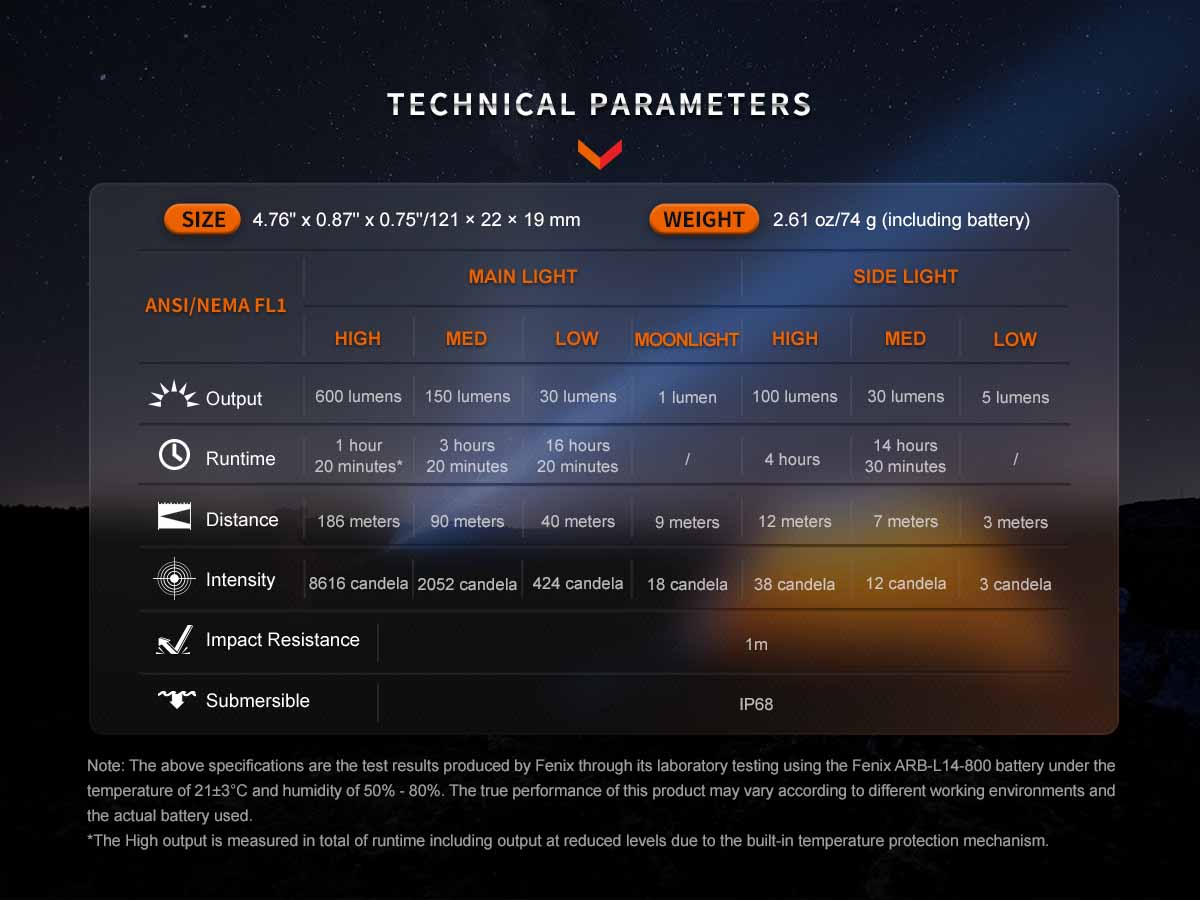

Main light: With the light switched on, tap the tail switch to cycle through Moonlight→Low→Med→High.

Side light: With the light switched on, tap the tail switch to cycle through Low→Med→High.

Intelligent Memory Circuit

The main light memorizes the last selected output. With the light switched off for over 1 second, turn on the light again and the previously used output will be recalled.

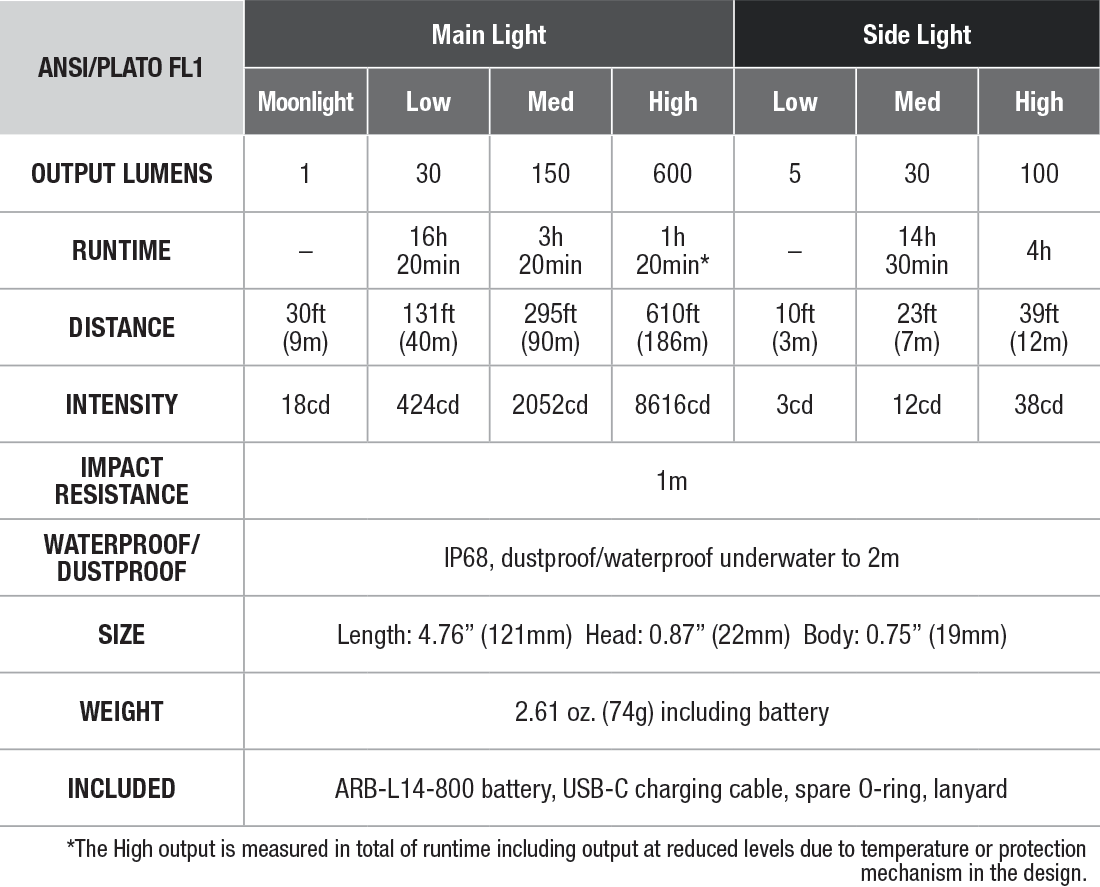

Battery Specifications

*14500 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are considered user induced damage and are not covered by any Fenix warranty or liability.

**The high output of main light mode cannot be operated while using the AA battery.

Battery Replacement

Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Charging

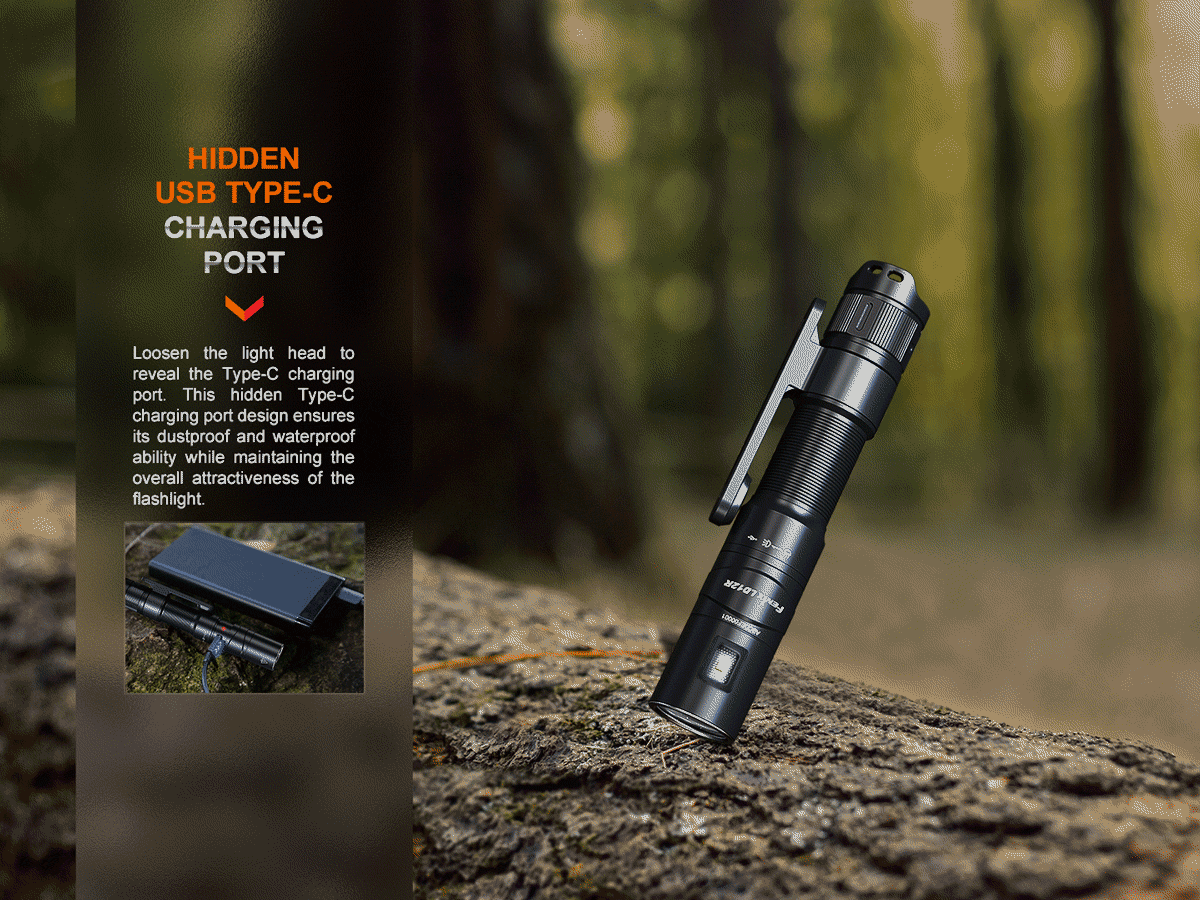

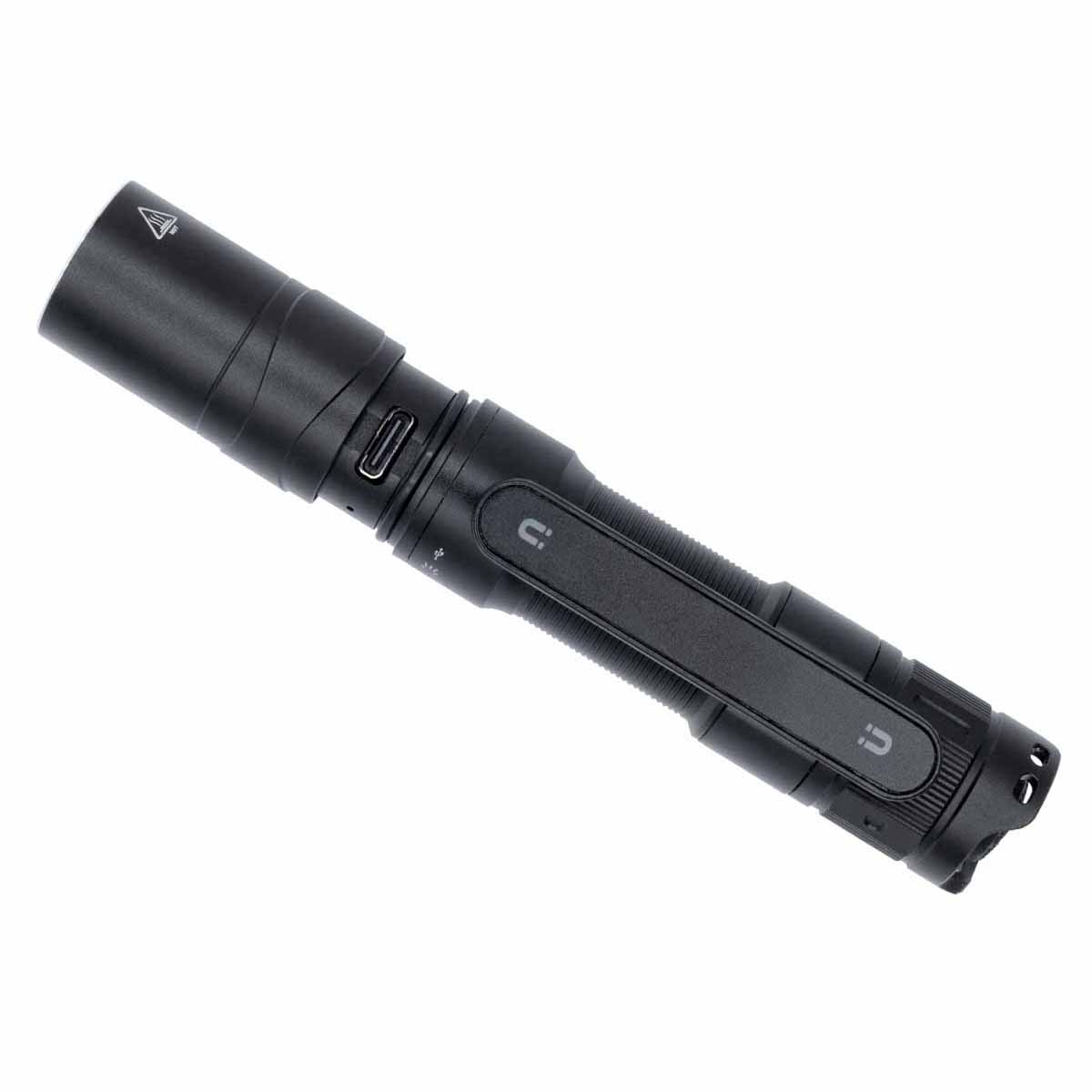

1. Loosen the light head to reveal the USB Type-C charging port and plug the USB A socket of the charging cable into an approved USB powered outlet, then connect the USB Type-C socket of the charging cable to the light.
2. The indicator will display red while charging, and will turn to green when fully charged.
3. Once charging has completed, be sure to tighten the light head to maintain the dustproof and waterproof functionality.
4. The normal charging time of the included Fenix ARB-L14-800 battery is approximately 2 hours from depleted to fully charged. The flashlight cannot be operated while charging.
5. Note: Internal charging only works with a Fenix ARB-L14 Series 14500 battery.

Battery level indication

Loosen the light head to reveal the battery indicator. Press the switch, the battery indicator will flash for 3 seconds to show the remaining battery power.

Green light on: saturated 100% - 85%

Green light flashes: sufficient 85% - 50%

Red light on: poor 50% - 25%

Red light flashes: critical 25% - 1%

Note: This feature only works with a Fenix ARB-L14 Series 14500 battery.

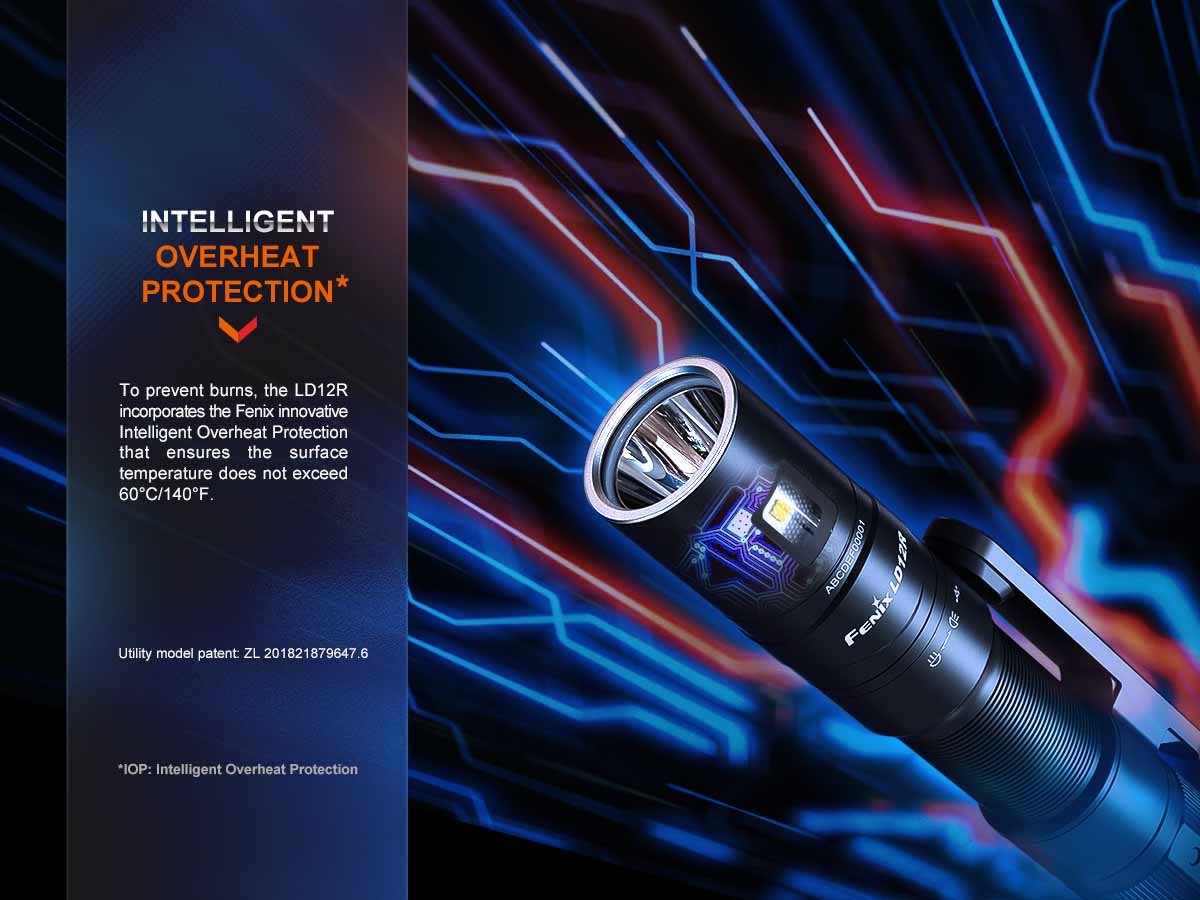

Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. The light will automatically step down a few lumens to reduce the temperature to a safe level when this situation occurs.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Moonlight output is reached. When Moonlight output is reached, the light blinks 3 times every 5 minutes to remind you to recharge or replace the battery.

Note: This feature only works with a Fenix ARB-L14 Series 14500 battery.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Remove the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: Poor battery level.
  Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
  B: The threads, PCB board contact or other contacts are dirty.
  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Warning

• DO NOT place this flashlight in the reach of children!
• Do NOT shine the flashlight directly into the eyes of anyone!
• Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
• Do NOT use the flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
• This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the flashlight shell. Pay close attention to avoid burns.
• Remove the battery from the flashlight to prevent accidental activation when the flashlight is placed in a closed-in and flammable environment such as pockets and backpacks!
• The LED of this flashlight is not replaceable; so the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.

What is the product positioning of LD12R? What are the key features of LD12R?

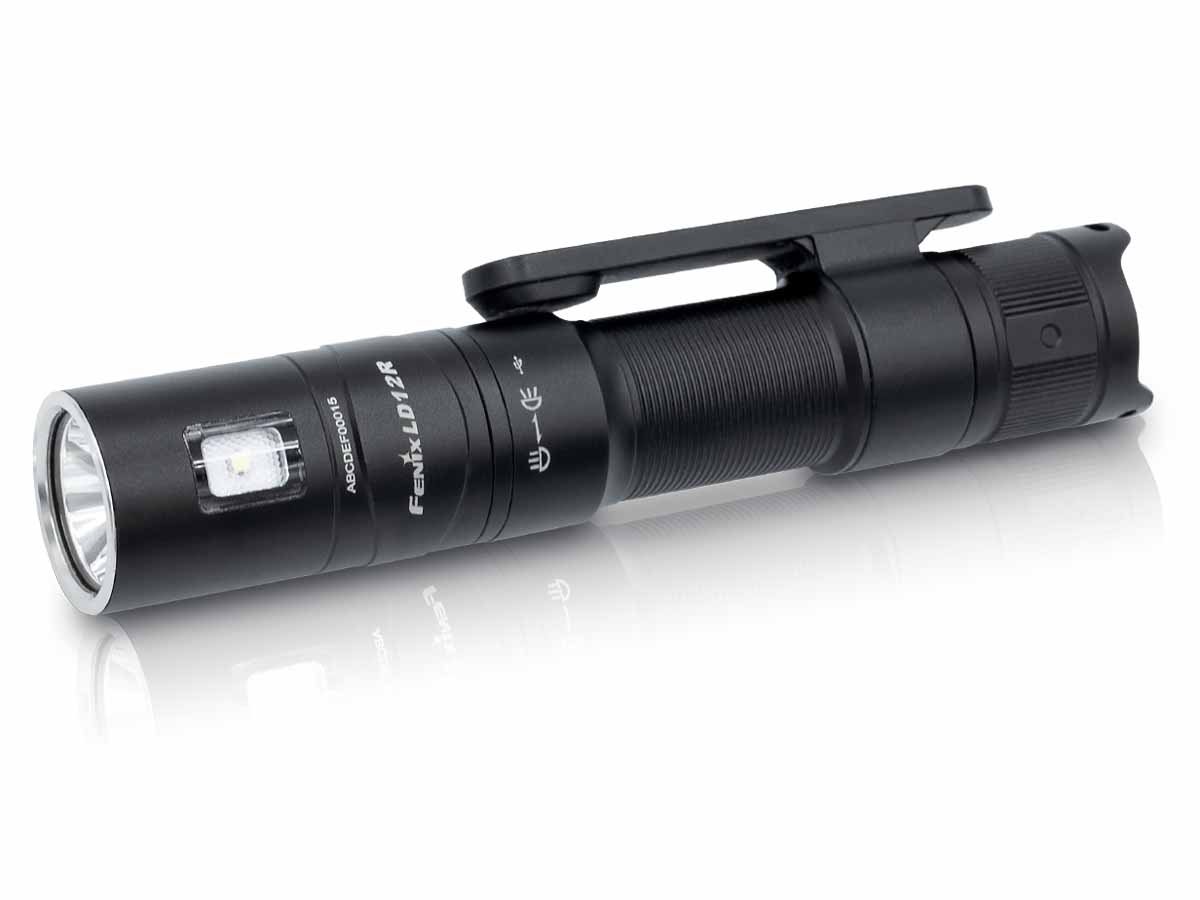

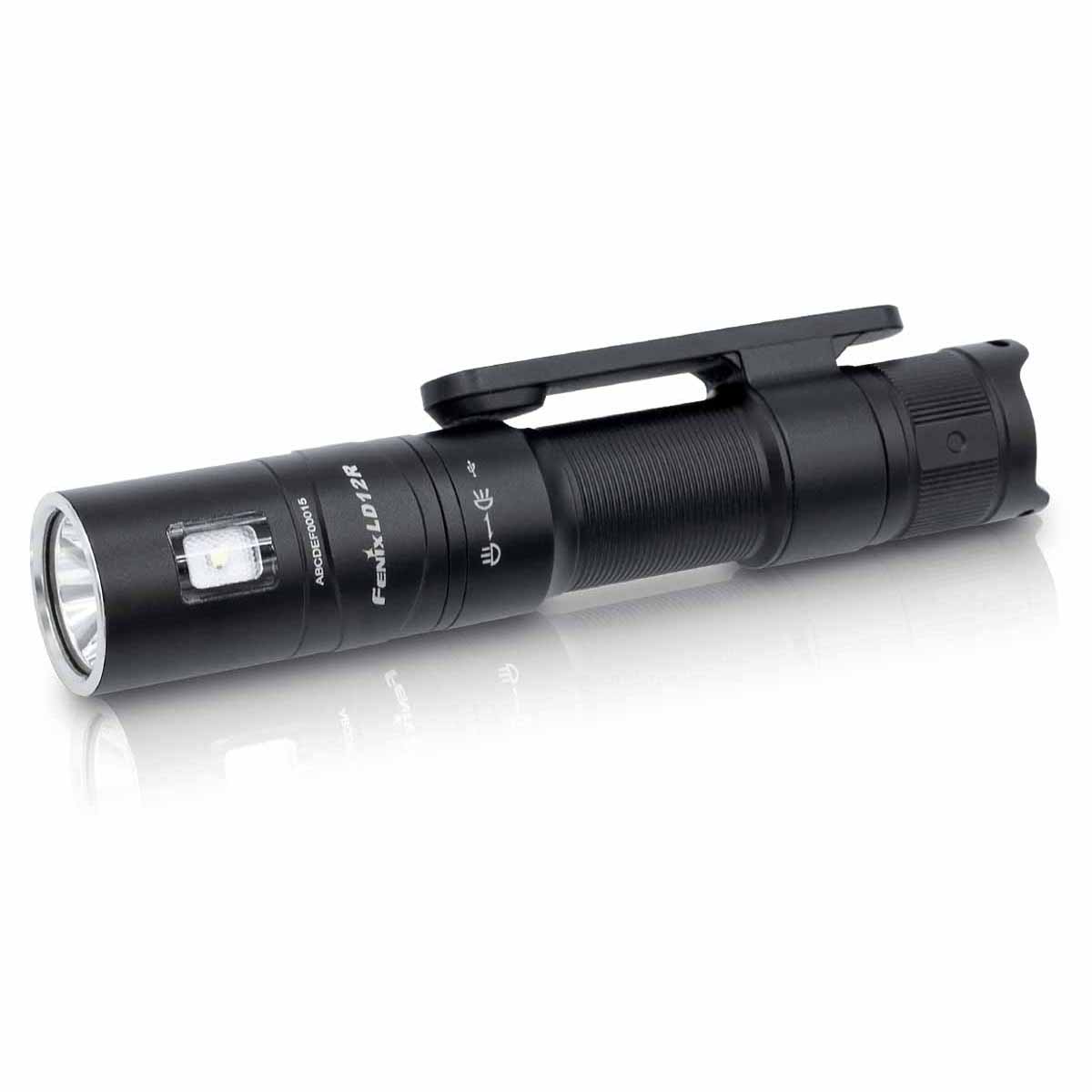

A: Fenix LD12R is a dual light sources multifunctional flashlight. Its key features include:

1. Unique side light source.
2. Magnetic body clip.
3. Hidden USB Type-C charging port.

What kind of LED is used in LD12R? Does Fenix offer to replace LED?

A: The main light uses a Luminus SST20 cold white LED and the side light uses a SC1818C LED; with a lifespan of 50,000 hours.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance, cause product damage, and void the warranty.

What is the color temperature of LD12R?

A: Around 6500K.

What is the working voltage of LD12R?

A: The operating voltage is 2.8V-4.2V while using a Fenix ARB-L14-800 battery.

The operating voltage is 0.9V-1.6V while using an AA Ni-MH or Alkaline battery.

Is LD12R rechargeable? How long is the charging time?

A: Yes. Loosen the light head to reveal the USB Type-C charging port. The indicator will display red while charging and will turn green when fully charged. The normal charging time is approximately 2 hours from depleted to fully charged.

Why does the LD12R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the Moonlight mode is reached.

Why does the LD12R happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

What kind of battery can be used in LD12R?

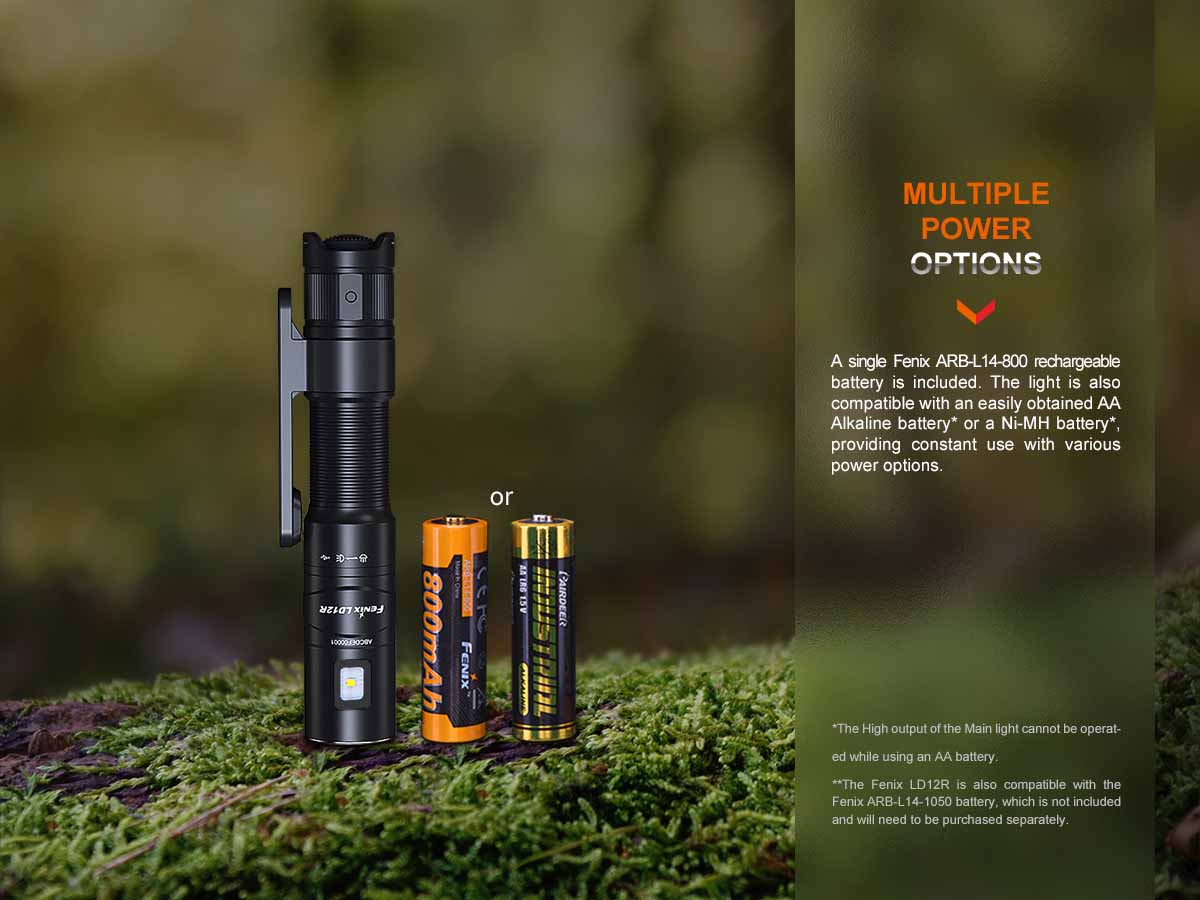

A: It is recommended to use a Fenix ARB-L14-800 battery. The flashlight is also compatible with an AA Ni-MH or Alkaline battery. Other Li-ion batteries are not recommended. As an unmatched battery may cause the flashlight to fail to work normally.

Is the LD12R battery port waterproof?

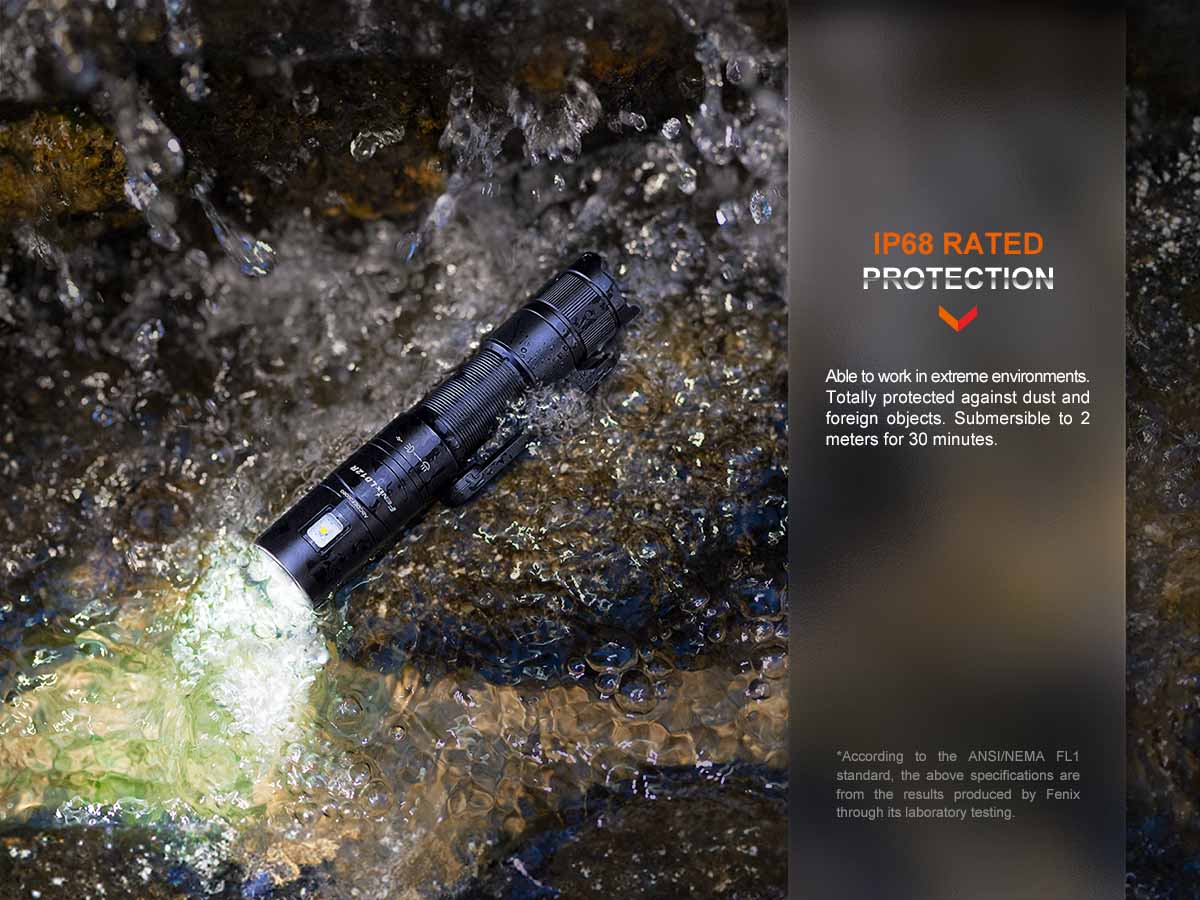

A.  The light is waterproof so long as the battery port cover is completely tightened.

What are the optional accessories for LD12R?

A: Fenix AOD-S V2.0 diffuser tip.

What should I do if the LD12R needs repair?

A:
1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery: 1 year) of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
