On/Off

With the the light locked, rotate the toggle switch to any mode to turn on the light.

With the the light switched on, rotate the toggle switch to lock mode to turn off the light.

With the the light unlocked, press and hold the electronic switch for 0.5 s to turn on/off the light.

Mode Switching

Mode A is spotlight mode, mode B is floodlight mode, mode C is spot- and floodlight, mode D is flash mode.

With the the light switched on and locked, rotate the toggle switch in clockwise to cycle through OFF/lock→mode A→mode B→mode C.

With the light switched on and unlocked, press and hold the electronic switch for 1.2 s to enter mode D(defaults to Turbo), and press and hold the electronic switch for 1.2 s again to return to the last selected output.

Output Selection

With the the light switched on and unlocked(including flash mode), single click the electronic switch to select output.

Mode A: single click the switch to cycle through Eco→Low→Med→High.

Mode B: single click the switch to cycle through Eco→Low→Med→High→Turbo.

Mode C: single click the switch to cycle through Eco→Low→Med→High→Turbo.

Mode D: single click the switch to cycle through Strobe→SOS→return to last selected output.

Intelligent Memory Circuit

1. Turn on/off by toggle switch: mode A will be activated on Low each time it is turned on, mode B and C will automatically memorize the last selected output.
2. Turn on/off by electronic switch: the light memorizes the last selected output. When turned on again the previously used output will be recalled.
   Note: mode D will be activated on Turbo each time it is turned on.

Intelligent Brightness Downshifting Sensor

The flashlight has a built-in intelligent sensing circuit. When the light surface is close to the lighting object (about 60mm) for more than 1.5 s, the flashlight will automatically downshift the output level to Low output of mode A to avoid danger caused by high temperature. When the light surface is more than 0.8 s away from the lighting object, the flashlight automatically recalls the previously used output level.

Turning on/off Intelligent Brightness Downshifting Sensor

*By default the sensor is On

To turn Off: With the light locked, press and hold the electronic switch for over 10 seconds. The light will flash quickly 8 times to indicate the sensor has been disabled.

To turn On: With the light locked, press and hold the electronic switch for over 10 seconds. The light will flash 2 times to indicate the sensor has been enabled.

Charging

1. First switch off the light and open the anti-dust cap, plug the USB Type-C socket of the charging cable into the light, then connect the other end of the charging cable into the included adapter.
2. When charging, the charging indicators will flash from left to right to display charging status. The five indicators will be constant-on after charging is complete.
3. Be sure to close the anti-dust cover once charging is completed.

Power Bank Function

1. Switch off the light and open the anti-dust cap and insert the USB Type-A socket of the charging cable into the USB discharging port of flashlight, then connect the other USB Type-C socket of the charging cable to the digital device with an USB Type-C port.
2. Single click the electronic switch to begin discharging, the indicators will recede from right to left to display the status.
3. Be sure to close the anti-dust cover once charging is completed.

Note：

1. The light can only be turned on at 100 lumens when charging.
2. The light and the included charging cable support QC2.0, PD2.0 fast charging protocols.The normal charging time is approximately 4 hours from depletion to full charging.
3. All modes are available when discharging.
4. If the voltage is too low, the light will stop discharging.

Battery Level Indication

With the light switched on/off(including locked status), single click the electronic switch to check the battery level and indicators will last for 3 s. Single click the electronic switch again in 3 s to close the indicators.

• Five blue lights on：100%-80%
• Four blue lights on：80%-60%
• Three blue lights on：60%-40%
• Two blue lights on：40%-20%
• One blue light on：20% - 1%

Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used on High mode for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user the reselection of High mode.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, one battery level indicator blinks to remind you to timely recharge the battery until it is completely power off.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Rotate the toggle switch in anticlockwise direction to lock the flashlight to avoid accidental activation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: Poor battery level.
  Solution: Recharge the battery.
  B: The product, battery contact or other contacts are dirty.
  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Warning

• Do place this light in the reach of children!
• Do NOT shine the light directly into the eyes of anyone!
• Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
• Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails!
• This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
• Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
• The LED of this flashlight is not replaceable; so the whole light should be replaced when the LED reaches the end of its life.

Q1: What are the key features of LR40R V2.0?

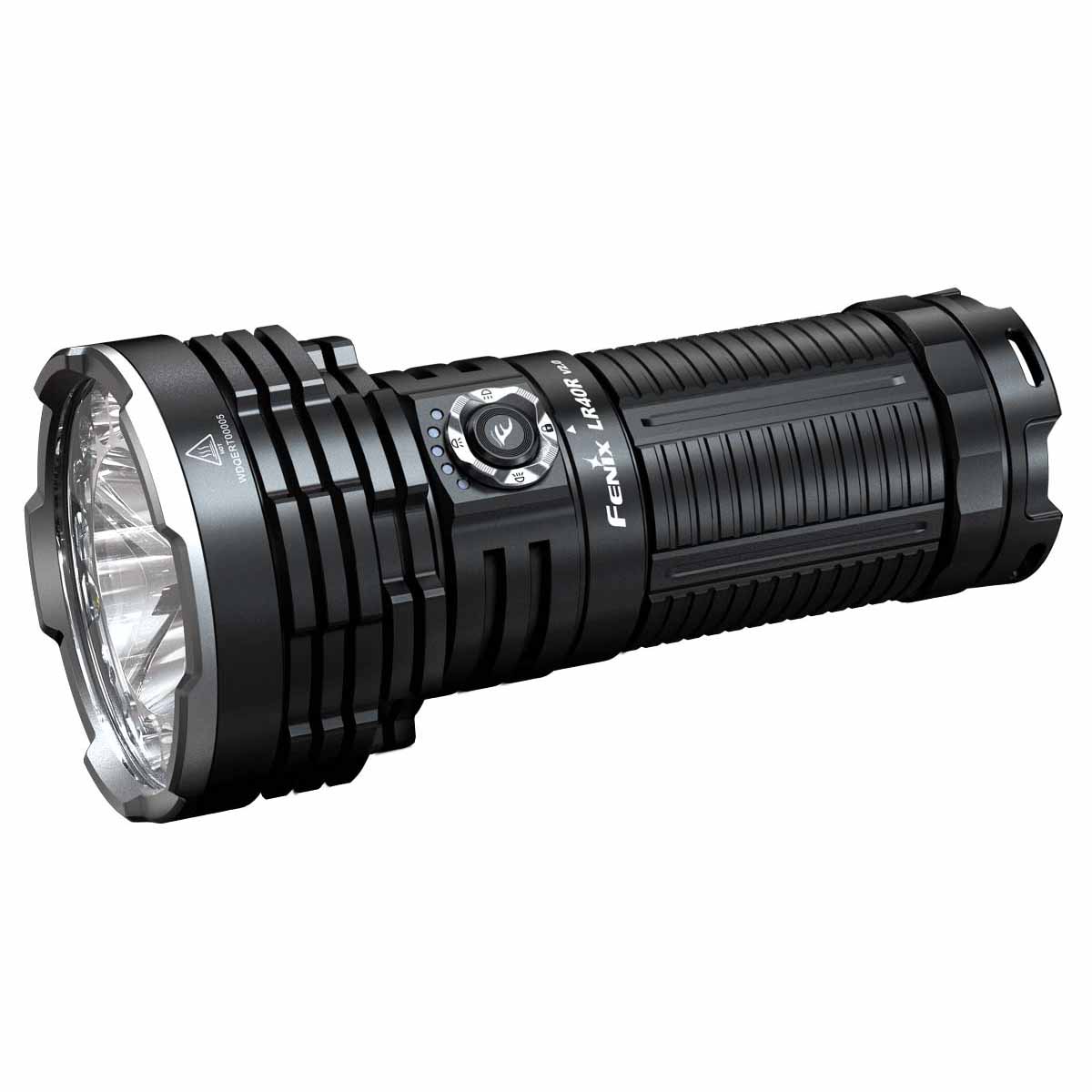

A: Fenix LR40R V2.0 is a super bright spot-and-flood searching flashlight. Its key features include:

1. Rotary toggle switch and an eletronic switch for single-handed operation.
2. Spotlight, floodlight and combined modes for different lighting demands.
3. USB Type-C fast charging port and USB-A discharging port.
4. Compact size for one-handed grip and great protability.

Q2: What kind of LEDs are used in LR40R V2.0? Does Fenix offer to replace LED?

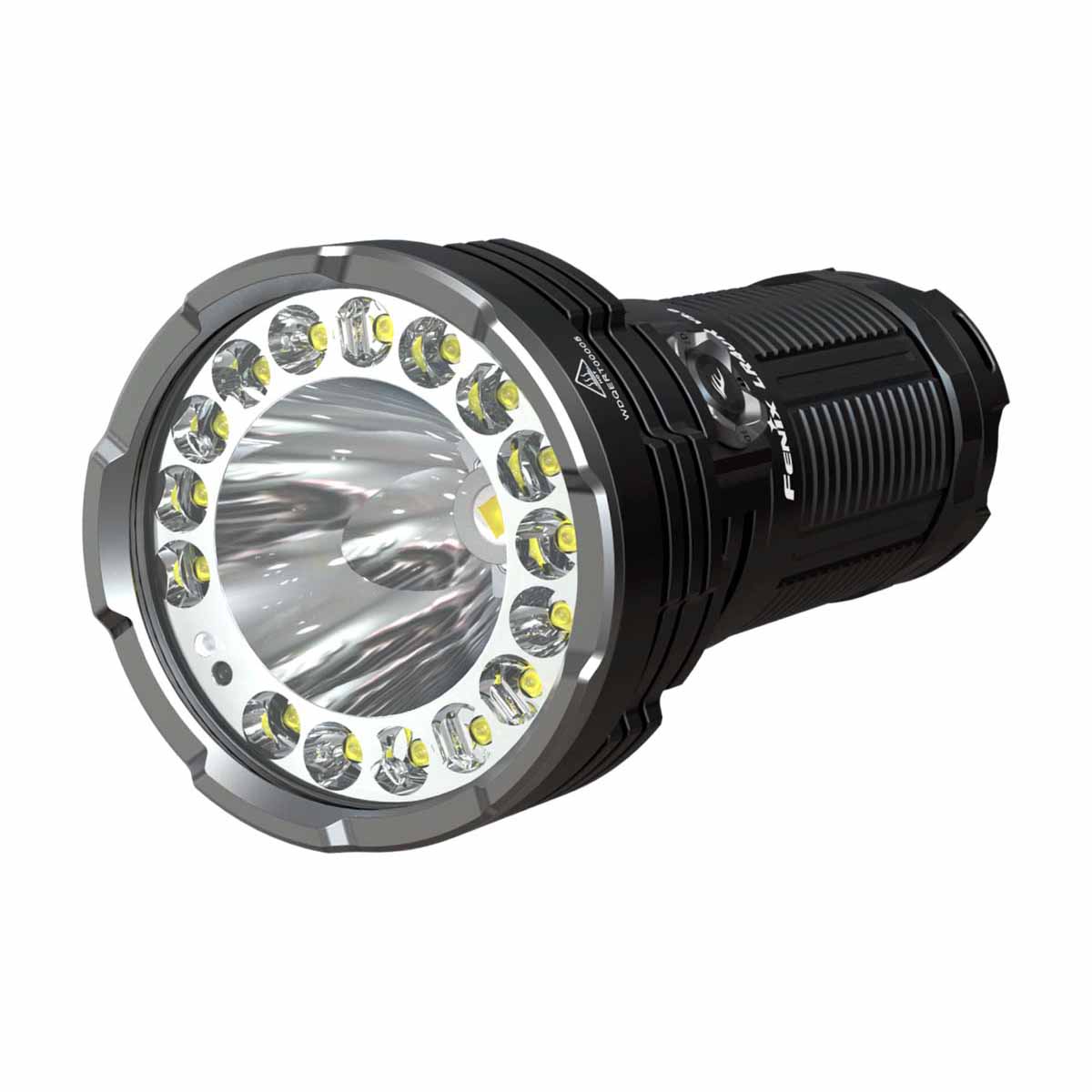

A: A Luminus SFT70 LED and 16 Lumileds HL2X LEDs; with a lifespan of 50000 hours.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3: What is the color temperature of LR40R V2.0?

A: The color temperature of LR40R V2.0 is around 6000K.

Q4: What is the working voltage of LR40R V2.0?

A: 7.5V - 12.6V.

Q5: Is LR40R V2.0 rechargeable? How long is the charging time?

A: LR40R V2.0 is rechargeable. The USB Type-C fast charging port supports QC2.0 and PD2.0 fast charging protocols. The charging time is about 4 hours from depleted to fully charged.

Q6: How to prevent accidentally activate the LR40R V2.0?

A: Lock: rotate the toggle switch pointer to “” to lock the flashlight. With the light locked, the flashlight cannot be turned on/off with the switch.

Unlock: rotate the toggle switch pointer away from the “” to unlock the flashlight. With the light unlocked, press and hold the switch for 0.5 s to switch on/off the flashlight.

Q7: Why does the LR40R V2.0 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at relatively high output levels for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached.

Q8: Why does the LR40R V2.0 happen to flicker?

A: The reasons that may cause the lamp to flicker, shine intermittently or even fail to illuminate:

A: Low battery.

Solution: Recharge the flashlight.

B: The contact point or contact of the battery or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.

Q9: What kind of battery can be used in LR40R V2.0?

A: The battery of LR40R V2.0 is not replaceable. LR40R V2.0 uses a built-in battery pack constructed from 3 batteries of 5000mAh.

Q10:  Is the LR40R V2.0 internally waterproof?

A. Yes, the light is internally waterproof and is thus still waterproof without the port cover in place.

Q11: What should I do if the LR40R V2.0 needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 2-year free repair: Fenix will repair a light free of charge within 2 years of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 2 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
