Operation Instruction

Rotate the magnetic ring to turn on/off the light, to select the wanted output level, and to check the battery level. From left to right: Battery level, R+, Off, White low, White high.

Battery Level Indication

Rotate the magnetic ring to the battery icon. There are three statuses:

Red light constantly on: Sufficient

Red light slow flash: Low

Red light quick flash: Critical, replace the battery soon as possible

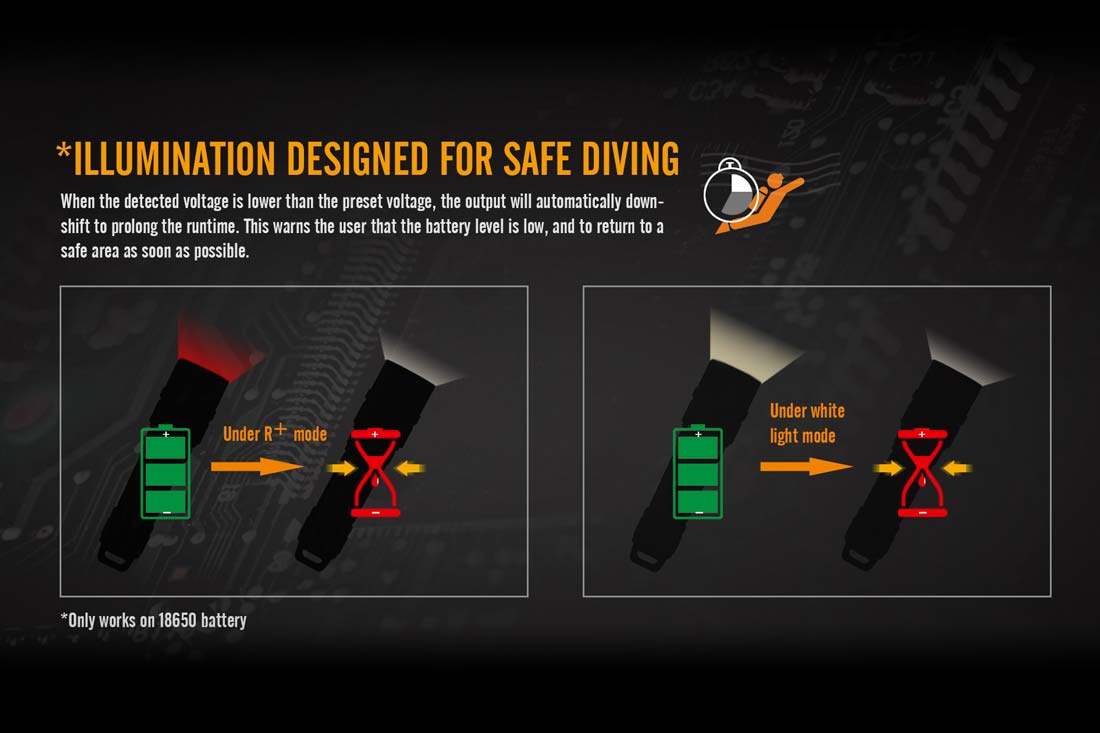

** Safe Diving Illumination Design

1. If the detected voltage is lower than the preset voltage when used on High output or Low output, the output will automatically step down to prolong the runtime.
2. If the detected voltage is lower than the preset voltage when used on the combination light mode, the red light will go out and the white light will automatically step down, thus to remind of battery replacement as soon as possible.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at High output level for extended periods. If the light reaches a temperature of 65℃ or above, it will automatically step down by a few lumens until 700 lumens output is reached. When the temperature is reduced, the output will gradually return to High output level.

Battery Replacement

Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Accessories Assembling

With the sports camera

1. Mount the flashlight to the flashlight clip, tighten and close the locker (available flashlight diameter ranges 23-26mm).
2. Connect the 3 ridges pivot arm of the flashlight holder and the 2 ridges pivot arm of the waterproof cover of the sports camera; tighten the long thumb screw.
3. Connect the 2 ridges pivot arm of holder and other accessories or the handheld floating bar; tighten the short thumb screw.

With the camera hot shoe adapter

1. Mount the flashlight to the flashlight clip, tighten and close the locker (available flashlight diameter ranges 23-26mm).
2. Connect the 2 ridges pivot arm of the flashlight holder and the 3 ridges pivot arm of the camera mount, tighten the short thumb screw.
3. Connect the camera mount and the hot shoe of the camera, tighten the hand gear.
4. The bottom port can be connected with the tripod via a cradle.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using excellent quality batteries.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Long-term use can result in O-ring wear. To maintain a proper watertight seal, replace the ring with an approved spare．
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: The battery needs replacing.

Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).

B: The threads, PCB board contact or other contacts are dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please refer to the warranty policy before contacting your authorized distributor.

Warning

The flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.
