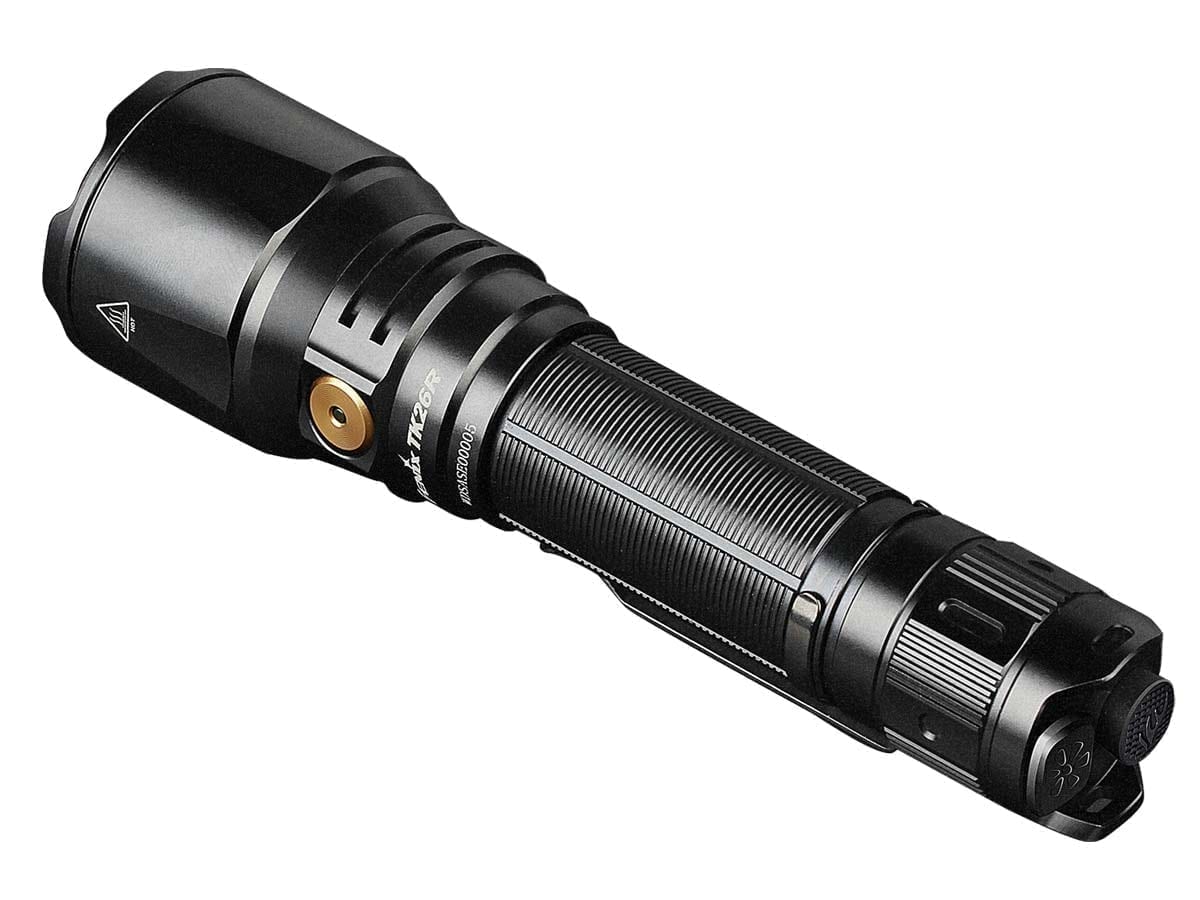

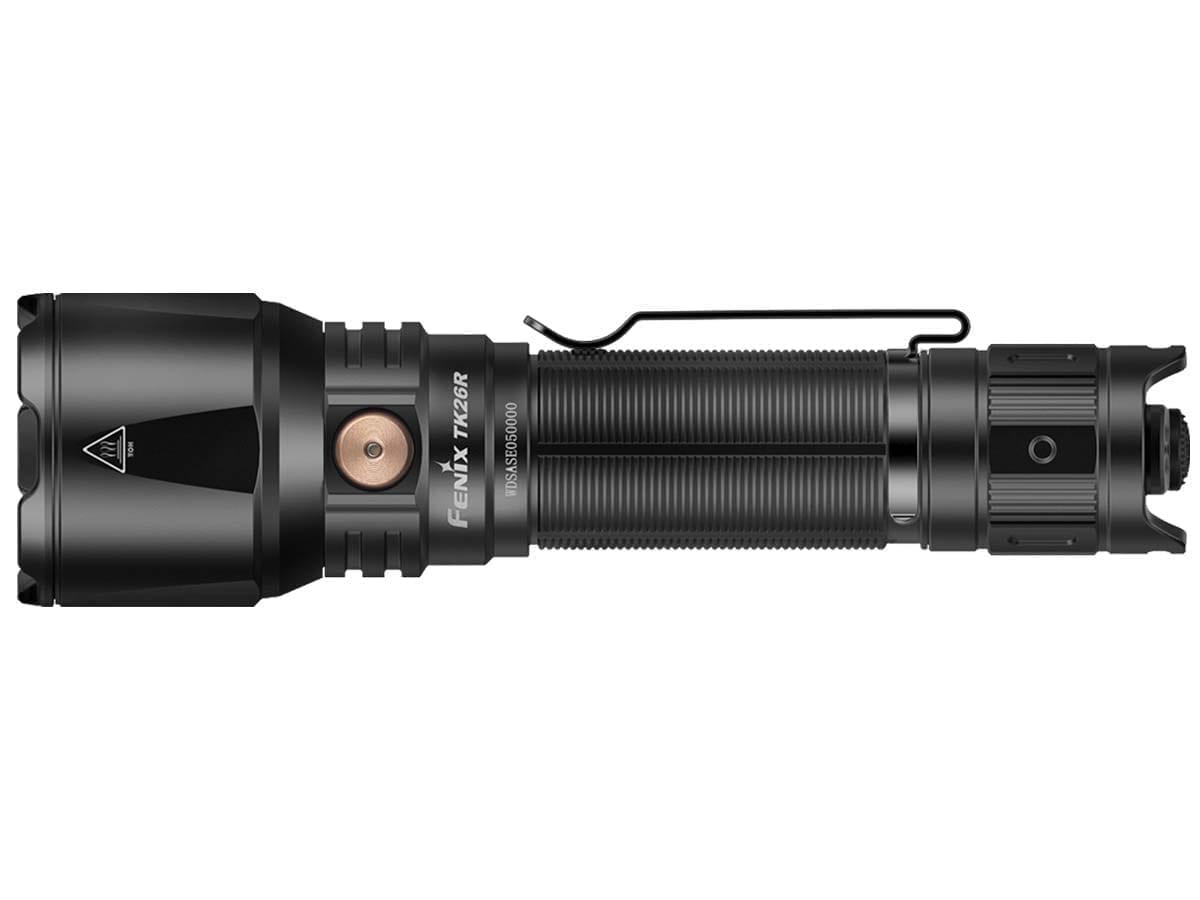

The TK26R Has Three Switches
The round one is the tactical tail switch, the oval one is the functional tail switch; the functional side switch is for white, red and green lights switching.
ON/OFF
Tap the tactical flashlight tail switch to momentarily turn on the light, release and the light will go out.
Fully press the tactical tail switch to constantly turn on the light. Press again to turn off the light.
Output Selection for TK26R
With the light switched on - single click the functional tail switch to cycle through Turbo→Low→Med→High.
Red and Green Lights Tactical TK26R
With the light switched on - single click the functional side switch to cycle through Red light→Green light; single click the functional tail switch to turn back to the previously used white light.
Strobe
With the light switched on - press and hold the functional tail switch for 0.8 seconds to activate strobe, click the functional tail switch or functional side switch to exit strobe.
With the light switched off - press and hold the functional tail switch to rapidly enter strobe, release and the light will go out.
Intelligent Memory Circuit
The light memorizes the last selected brightness level on White light mode (excluding strobe). When turned on again the previously used brightness level will be recalled.
Battery Specifications
| Type | Dimensions | Nominal Voltage | Recommended |
| Rechargeable Battery (Li-ion) | 18650* | 3.6V | Fenix ARB-L18 Series |
| Non-rechargeable Battery (Lithium) | CR123A | 3.0V | CR123A (No charging) |
Warning: Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or to the batteries being used.
*18650Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.
Battery Replacement for the TK26R Tactical Flashlight
Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.
Battery level indication
When the light is switched on, the battery level indicator inside the side switch will light up to display the battery status, the indicator will stay on for 3 seconds before it goes off.
- Green light on: saturated 100% - 85%
- Green light flashes: sufficient 85% - 50%
- Red light on: poor 50% - 25%
- Red light flashes: critical 25% - 1%
Note: This only works with Fenix ARB-L18 Series 18650 rechargeable Li-ion battery.
Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the indicator in the mid of the functional side switch will flash red to remind you to recharge or replace the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery runs out completely.
Note: This only works with Fenix ARB-L18 Series 18650 rechargeable Li-ion battery.

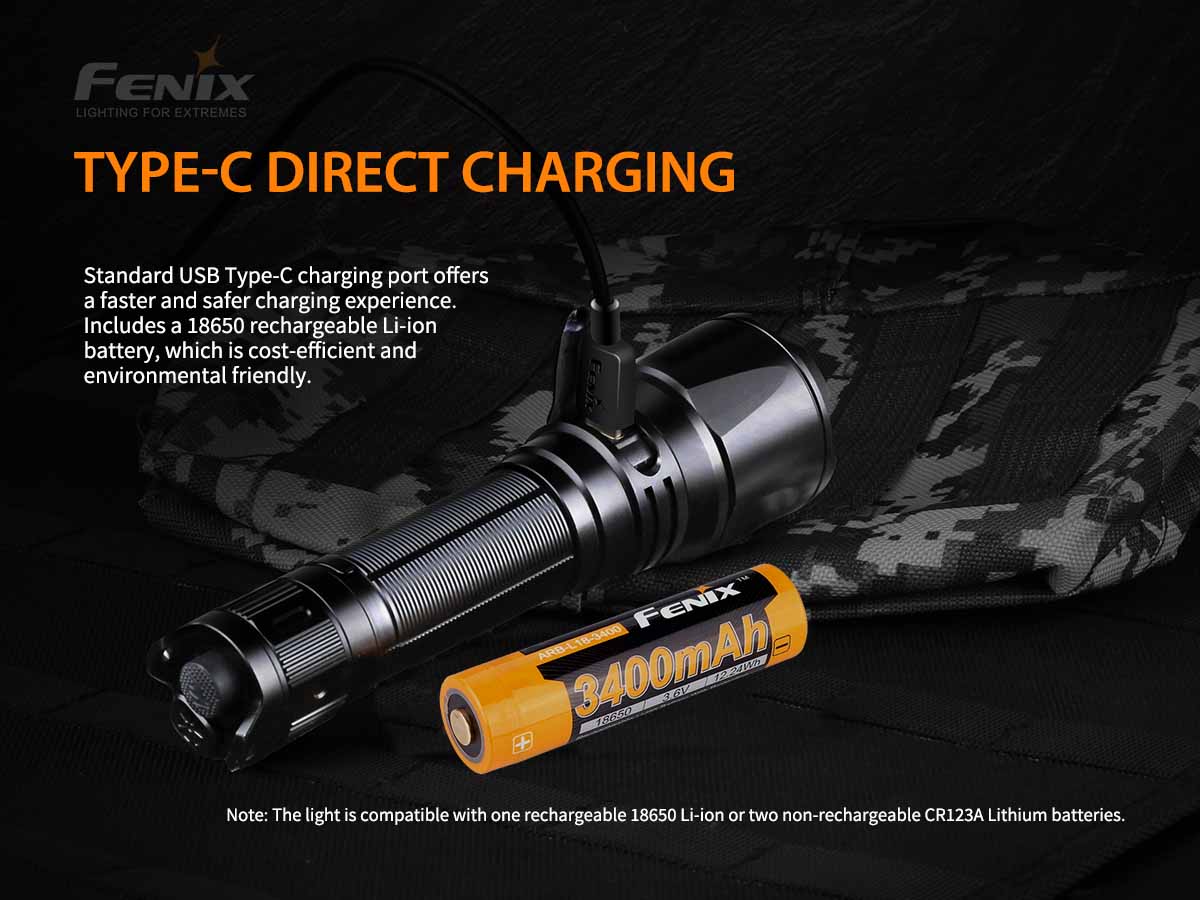

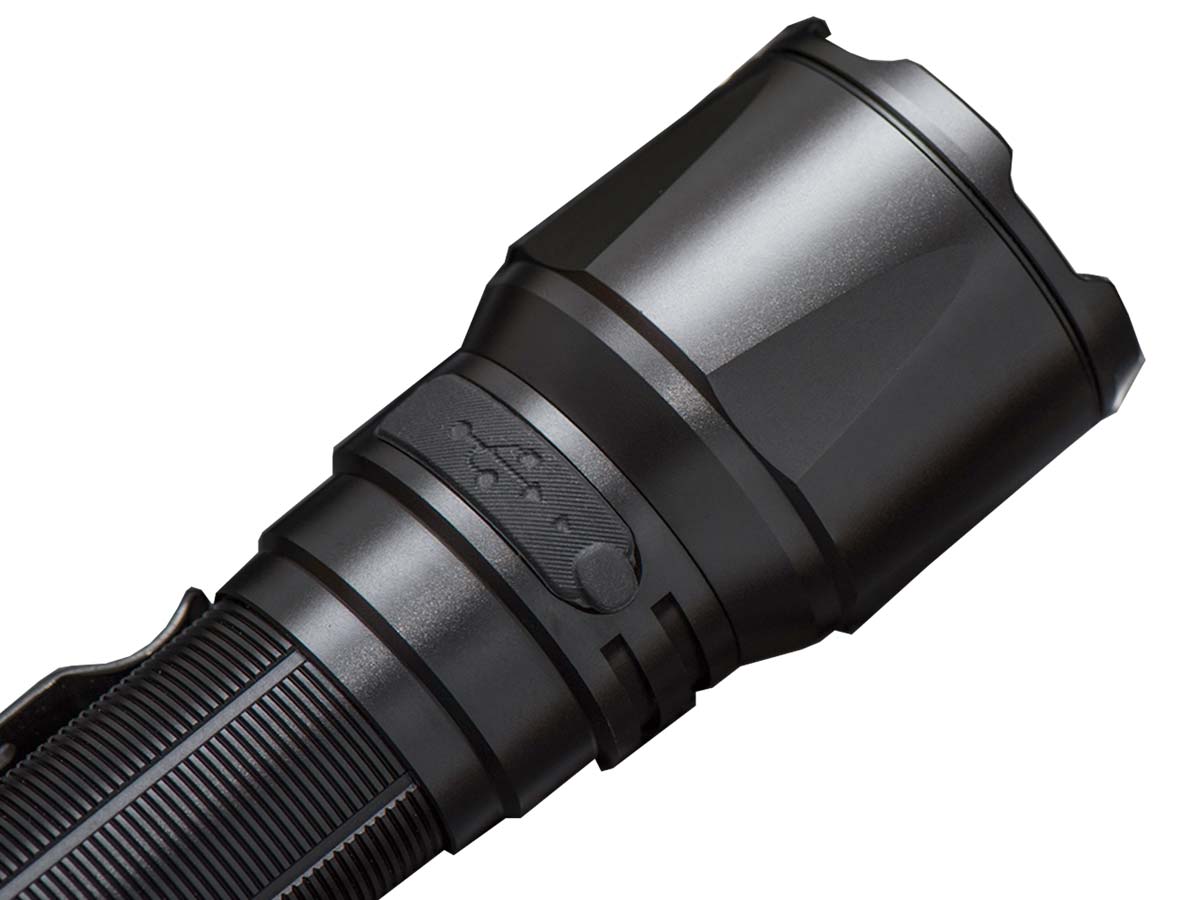

Charging the TK26R Tactical Flashlight
- First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
- The indicator will display red while charging, and will turn to green when fully charged.
- Once charging is completed, be sure to close the anti-dust cover. (The light features inner waterproofing treatment, thus the performance won't compromise even if there is water in the charging port ).
Note:
- The normal charging time of the included Fenix ARB-L18-3400 rechargeable Li-ion battery is approximately 3 hours from depletion to full charging.
- Recharge a stored light every four months to maintain optimum performance of the battery.
- Low output can be turned on/off by functional side switch while charging. There will be no response upon operation of tail switches while charging. If the tactical tail switch is mistakenly operated during charging process, then unplug the charging cable and press the tactical tail switch to begin charging again.
Intelligent Protection
The light will accumulate a lot of heat when used on Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down by a few lumens to reduce temperature. When the temperature is reduced, the output will gradually return to Turbo.
Usage and Maintenance
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using an excellent quality battery.
- If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
- Li-ion battery needs to be charged even if the battery is not exhausted, charge immediately when the battery is exhausted; it has no memory effect.
- Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
- Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: The battery needs replacing.
Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact your authorized distributor.
Warning
- This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.
- This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
