Operating Instruction

Switches

On the right side of the rechargeable headlamp, there are rotary and electronic switches.

On/off

Rotate the rotary switch clockwise to turn on the headlamp.

Rotate the rotary switch counterclockwise to the OFF logo to turn off the headlamp.

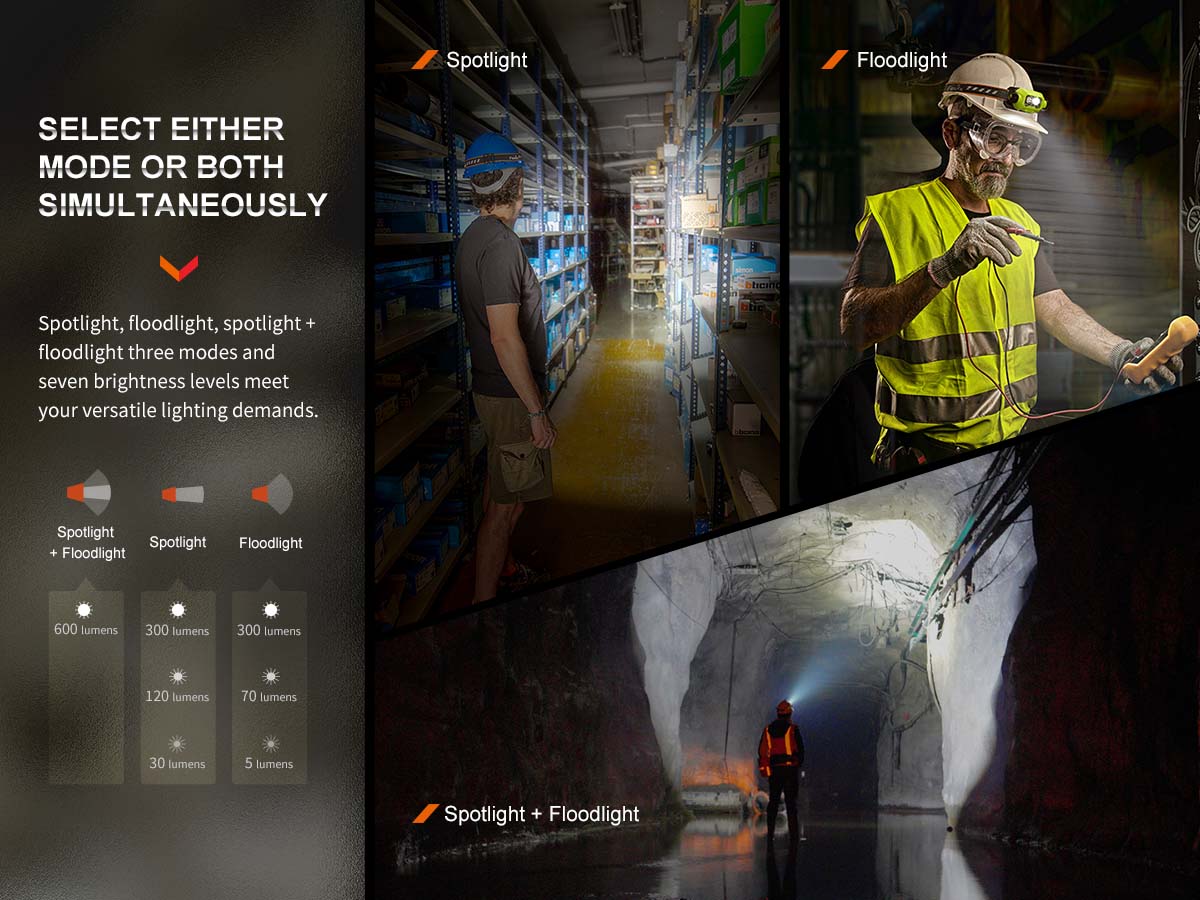

Mode switching

Rotate the rotary switch to the corresponding logo to activate the desired mode of spotlight, floodlight or combined light mode.

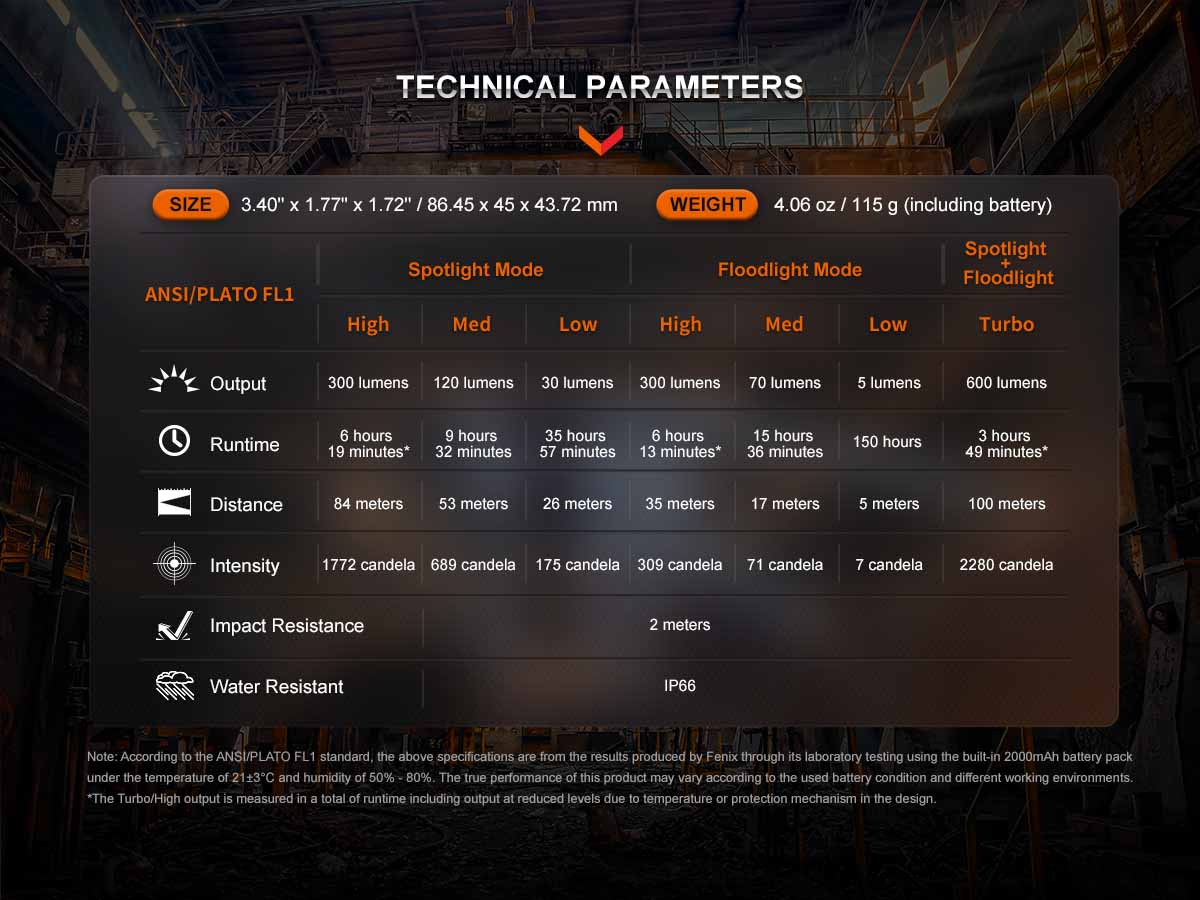

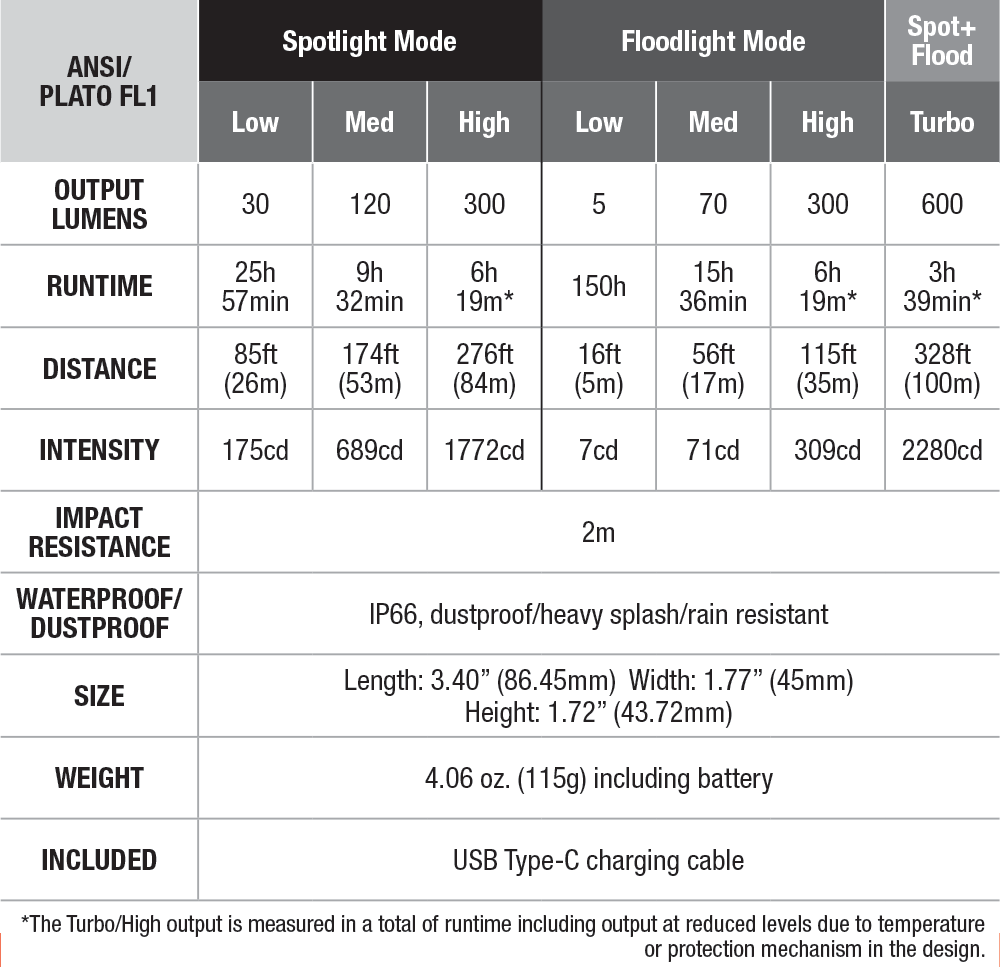

Output Selection

In Spotlight mode, single click the electronic switch to cycle through Spotlight Low →Spotlight Med →Spotlight High.

In Floodlight mode, single click the electronic switch to cycle through Floodlight Low→ Floodlight Med →Floodlight High.

* When activates the combined light mode, there is Turbo mode ONLY.

Intelligent Memory Circuit

The work headlamp memorizes the last selected output on spotlight and floodlight modes. When turned on again the previously used output will be recalled.

Intelligent Sensor Function

A blue intelligent sensing function indicator is designed on the left side of the headlamp to indicate the on/off status of the sensing function; when the intelligent sensing function is not required, this function can be turned off by manual operation.

Sensing function on/off

The lamp memorizes the last selected on or off-state sensing function, when turned on again the previously used on or off-state sensing function will be recalled.

With the work headlamp switched on, press and hold the electronic switch for 1.2 seconds, the lamp will flash 8 times at Turbo mode, and the blue sensing function indicator light will turn off at the same time, indicating that the sensing function has been turned off; press and hold the electronic switch again for 1.2 seconds, the lamp will flash at Turbo mode 2 times, and the blue sensing function indicator light is on, indicating that the sensing function is turned on.

Sensing light on/off

In the power-on state, when the sensing function is on (the blue sensing function indicator is on), wave your hand within the sensing range in front of the lamp to temporarily turn off the lamp, and wave your hand again to turn on the lamp.

In the power-on state, if the sensing function is turned off (the blue sensing function indicator is off), it will not respond to any motion operation.

Note:

1. The sensing range is within about 10cm in front of the lamp, and may vary slightly depending on the material and color of the sensing object, the ambient light, the brightness of the selected mode, and the waving speed.
2. The sensing function is infrared sensing. There is an infrared emitter module and an infrared receiver module in the front of the lamp. Within the sensing range, turning on or turning off the lamp by waving a hand, but if there are other objects in front of the lamp within the sensing range, the lamp will also be turned on or off.
3. The sensing function can only control the light on and off under the current lighting mode, and will not change the brightness level.
4. When the sensing function is turned on, the rechargeable headlamp is temporarily turned off. At this time, the headlamp is in a standby state, and the power will be consumed for a long time.

Charging

1. Switch off the lamp, uncover the cap and plug the USB Type-C side of the charging cable into the charging port of the lamp, and the other side into an electrical outlet.
2. When charging, the charging indicators will flash from left to right to display charging status. The four indicators will be constant-on after charging is complete.
3. The normal charging time is approximately 1.5 hours from depletion to full charging.
4. When charging is complete, replace the anti-dust cap to ensure the waterproof and dustproof ability.

Note:

1. When charging, the Low mode can be used, but charging time will be prolonged
2. Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.

Battery Level Indication

With the lamp switched off, single click the electronic switch to check the battery status, the indicators will last for 3 seconds.

• Four blue constant on: 100% - 80%
• Three blue constant on: 80% - 60%
• Two blue constant on: 60% - 40%
• One blue constant on: 40% - 20%
• One blue flashes: critical 20% - 1%

Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at relatively high modes for extended periods. When the lamp reaches a high temperature, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops, it will then allow the user for the reselection of the modes.

Low-voltage Warning

When the voltage level drops below the preset level, the work headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, one of the charging indicators blinks blue constantly to remind you to timely recharge the battery.

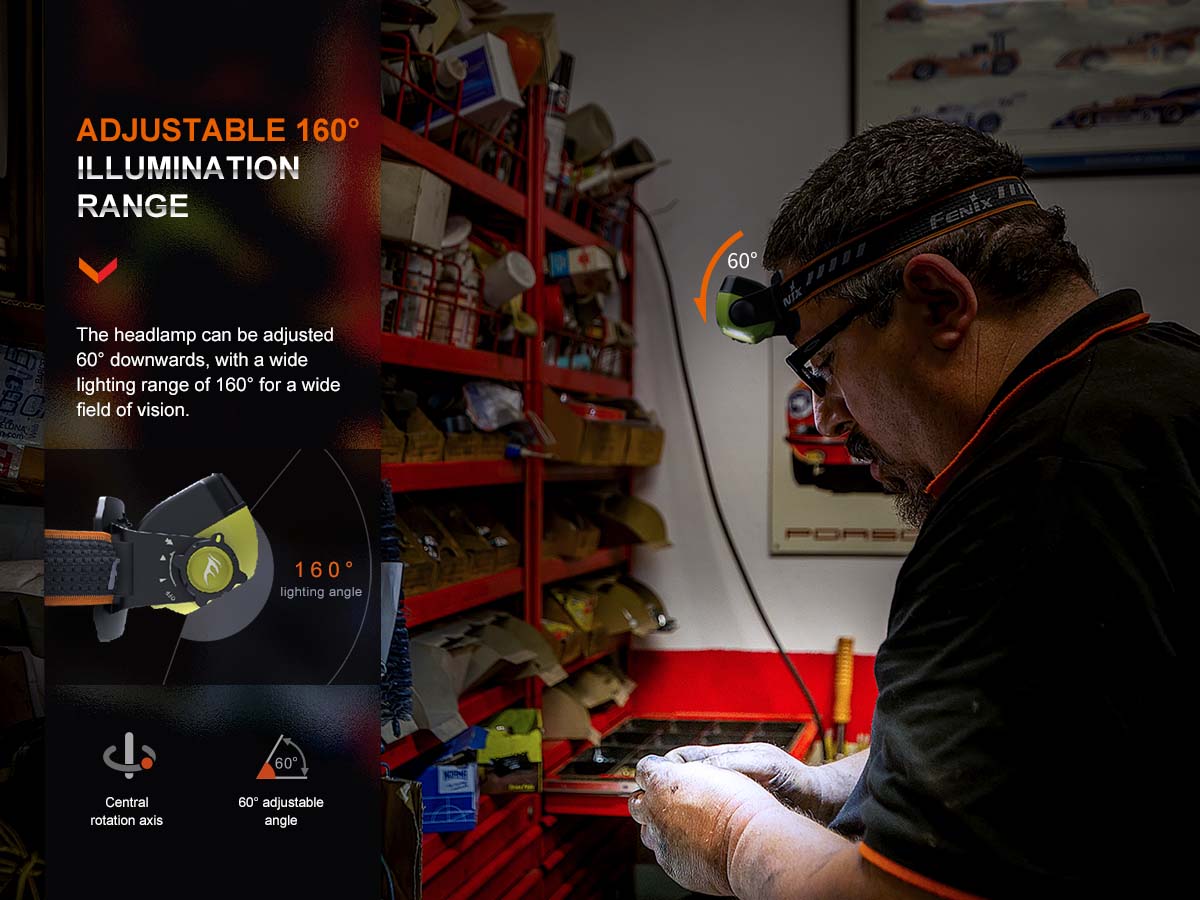

Headband Assembly

1. The headband is factory assembled by default.
2. Adjust the headband by sliding the buckle to the required length.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the headlamp and will void the warranty.
• Recharge a stored headlamp every four months to maintain optimum performance of the battery.
• The rechargeable headlamp may flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: Poor battery level.
  Solution: Recharge the battery.

If the above methods don't work, please contact your authorized distributor.

Warning

• Do place this headlamp out of the reach of children!
• Do NOT shine the headlamp directly into the eyes of anyone!
• Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
• Do NOT use the headlamp in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the headlamp or internal battery fails!
• This headlamp will accumulate a lot of heat while working, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
• Turn off and lock the headlamp or remove the battery from the headlamp to prevent accidental activation when the headlamp is placed in a closed and flammable environment such as pockets and backpacks!
• The LED of this headlamp is not replaceable; so the whole headlamp should be replaced when the LED reaches the end of its life.

Q1. What kind of LED is used in WH23R? Does Fenix offer to replace LED?

A: Fitted with two Lumileds LEDs with a lifespan of 50,000 hours.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q2. What is the white light color temperature of WH23R?

A: Around 6000K.

Q3. What is the working voltage of WH23R?

A: Working voltage: 2.85V to 4.2V, and the limit working voltage range is 2.4V to 4.35V.

Q4. Is WH23R rechargeable? How long is the charging time?

A: Yes, WH23R is rechargeable with a USB Type-C port. The normal charging time is approximately 1.5 hours from depletion to full charging.

When charging, the charging indicators will flash from left to right to display the charging status. The four indicators will be constant-on after charging is complete.

Q5. How to prevent accidentally activating the WH23R?

A: Rotate the rotary switch counterclockwise to the OFF logo to turn off the headlamp to prevent accidental activation.

Q6. Why does the WH23R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: The reasons are:

1. Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at relatively high modes for extended periods. When the lamp reaches a high temperature, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops, it will then allow the user for the reselection of the modes.

2. Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, one of the charging indicators blinks blue constantly to remind you to timely recharge the battery.

Q7. Why does the battery level indicator blink during usage?

A: It indicates a poor battery level. When the minimum voltage is less than 3.0V with the lamp switched on, the battery level indicator will remind by blink.

Q8. Does WH23R have an Intelligent Memory Circuit? And Does the Intelligent Sensor Function have a memory function?

A: Yes, both have.

The headlamp memorizes the last selected output on spotlight and floodlight modes. When turned on again the previously used output will be recalled.

The lamp memorizes the last selected on or off-state sensing function, when turned on again the previously used on or off-state sensing function will be recalled.

Q9. Does the Intelligent Sensor Function of WH23R consume a lot of power and will it affect normal use?

A: The Intelligent Sensor Function will consume normal power while using. The continuous current of the infrared emission tube is 0.7mA, which does not affect normal use. Press and hold the electronic switch for 1.2 seconds to turn off/on the function.

Note: Turn the rotary switch to the "OFF" logo to turn off the lamp when not in use for a long time. If the lighting function is turned off by waving a hand, the product will continue to consume power.

Q10. What kind of battery can be used in WH23R?

A: The lamp is built in with a 2000 mAh Li-Polymer battery pack, which can not be replaced.

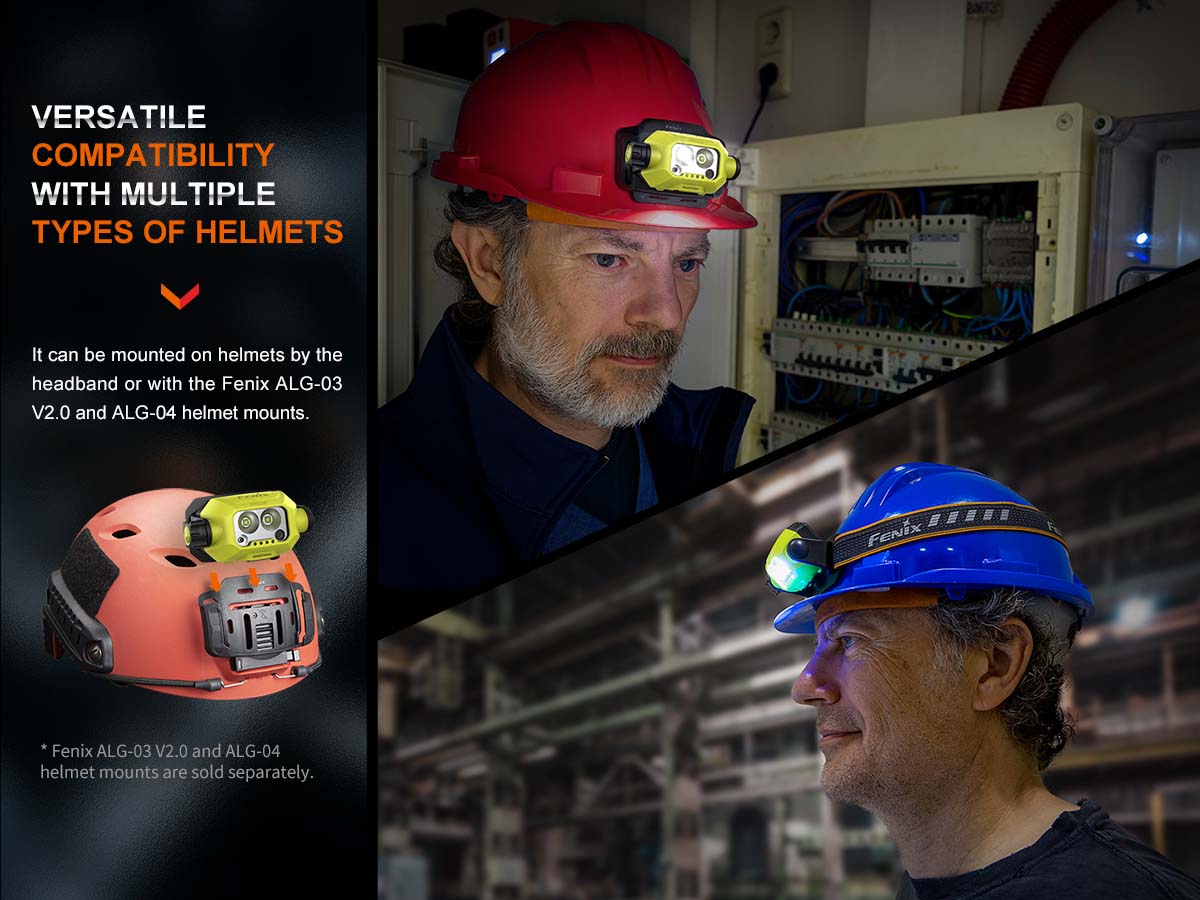

Q11. What are the optional accessories for WH23R?

A: The headlamp is compatible with ALG-03 V2.0 and ALG-04 Helmet Clip.

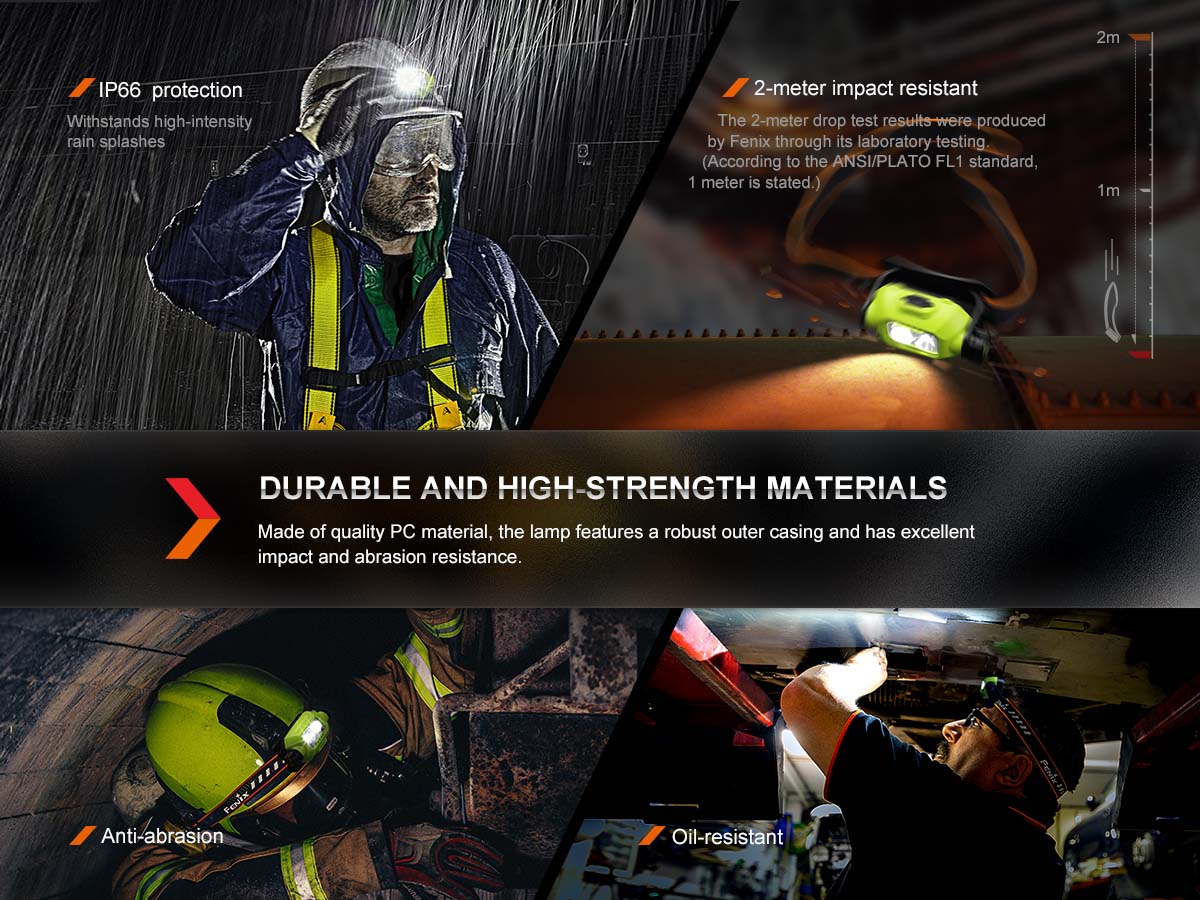

Q12.  Is the WH23R battery port waterproof?

A. The light is waterproof so long as the battery port cover is in place.

Q13. What should I do if the WH23 needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 2-year free repair: Fenix will repair a light free of charge within 2 years of purchase if problems develop with normal use.

3. Lifetime maintenance: If repair is required after 2 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. If you need warranty service, fill out the warranty form at https://www.fenixlighting.com/pages/warranty-repairs to start your repair claim.
